Insobanuro y'igicuruzwa

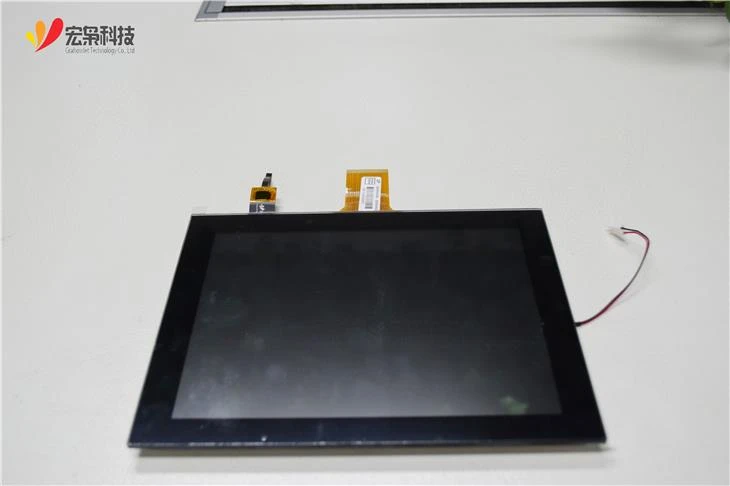

-Ikimenyetso 8 lcd touch ku ciciro c’ubuhinga bwa none CYTMA568 IC, ifise ubushobozi bukomeye bwo kurwanya - kandi ishobora gukoreshwa mu bibanza bitandukanye vy’ibikorwa bikomeye. Nk’ugukora neza n’ibirahuri vy’uburebure bwa 3-10mm, amazi, amaganzu, amazi yo mu kiyaga, 5% y’umunyu na PC imbere.
-Igishushanyo c’ibirahuri bitomoye kandi bigaragara bifise inkomezi nyinshi, Igishushanyo 8 inch lcd ku bw’imodoka gishigikira igikorwa gikomeye kandi cizigirwa gifise amashusho agaragara, ata n’igitutu gifise kandi kitagira igitutu, kigatuma umuntu abona neza.
- Igishushanyo c’ugukora ku mubiri carakoreshejwe cane mu bikorwa bitandukanye bifise iterambere ryihuta, nk’ubuhinga bwa banki, inganda zikora imodoka, inganda z’ubuvuzi n’ibindi.
-Ihereje ku gicapo c'inusu 8 inch lcd ku bijanye n'imodoka, turatanga kandi urutonde rw'imiti y'ubuvuzi ya PCAP y'ubuvuzi harimwo n'ibisubizo vyacu vya 4.3", 5", 10.1", 12.3", 15.6", 15.6", 17.3", 17.3", 17.3", 19", 19", 19", 19", 19", 21.5", 23.6", 30" na 32"" "
| Ivyiyumviro vya TPM | ||
| TPM | Igitigiri c'akarorero | HX0801809 |
| Ikirango | Grahowlet | |
| Ubunini | 8.0 inch | |
| Ubushuhe bwo gukora | -20℃- 70 degree | |
| Ubushuhe bw'ububiko | -30℃- 80 degree | |
| Ingero y'inzira | 191.00(W)x149.00(H)x10.45(D) mm | |
| Akarere ka kuraba | 163.00(W)x122.50(H) mm | |
| Intambwe | 162.00(W)x121.50(H) mm | |
| Uburyo bwo gufasha | Windows/Android/Linux n'ibindi. | |
| garanti | Umwaka 1 | |
| CTP | Ubwoko bwo hagati | I2C/USB |
| Ishusho | G+G | |
| Umugenzuzi IC | CYTMA568 | |
| Ingingo zo gukora | Amanota 10 | |
| Uguseruka | Ni vyiza canke bingana n'ibice 85% | |
| Ubukemurampaka bwo mu ruhande | kuruta canke bingana na 6H . | |
| Ubushobozi bw'ibikoresho | 2.8V - 3.3V | |
| TFT | Ingingo | 800x600 |
| Ubwoko bwo hagati | RGB/H DMI | |
| Amatoma | 900 cd/㎡ | |
| Raba Ingle | 70/70/50/70 | |
Ibikorwa vy'ingenzi
Niba ushaka interface ya USB, turashobora gutanga IIC kuri USB Bridgeboard
Ibikorwa bidasanzwe
Ibikorwa:
1) Igikorwa: amaganzu y’ugushigikira akozwe mu bikoresho bitandukanye nk’ivy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma vy’ivyuma.
2) Igikorwa: gufasha gukorako n’amazi, amavuta, amavuta- amazi n’umunyu.
3) Igikorwa gikomeye: Gushigikira gukora neza n’igipfukisho gikomeye nk’ikirahuri gifise ubushuhe, 10mm ari co gikomeye kuruta ibindi vyose.
Imisoro ishushe: lcd ikora ku gicapo c'imodoka, Ubushinwa lcd touch screen ku bacuruzi b'imodoka, abahinguzi, uruganda
